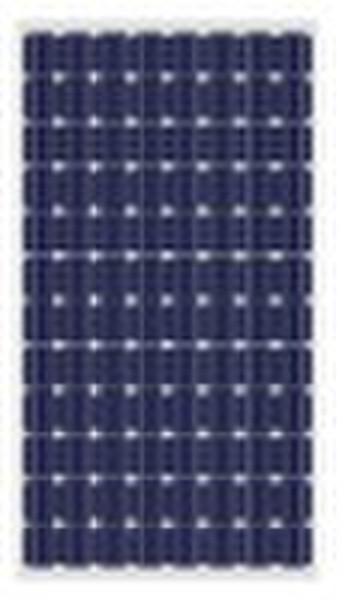

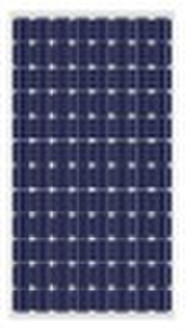

solar panel (Mono Module 50W/35W/220W)
Grant Lee
Contact person
Basic Information
| Max. Power | 250W |
|---|---|
| Place of Origin | Shanghai China (Mainland) |
| Brand Name | CHIKO SOLAR |
| Model Number | CK-MM-250W |
| Size | 1600*1050*40mm |
| Number of Cells | 96pcs |
| Material | Monocrystalline Silicon |
PV solar panel Products Mold: CK-MM-250W/CK-MM-235W/CK-MM-220W Maximum Power(W)250235220Optimum Power Voltage(Vmp)46.8446.8446.84Optimum Operatige Current(Imp)5.345.044.70Open Circuit Voltage(Voc)57.657.657.6Short Circuit Current(Isc)5.715.375.03Solar Cell:125*125 MonoNumber of Cell(pcs)8*12Brand Name of Solar Cells----CellSize of Module(mm)1600*1050*40Caple & Connector TypePass the TUV CertificateFrame(Material Corners,etc.)Aluminium-alloyBacking (Brand Type)TPTCell Efficiency for 250W(%)16.5Weight Per Piece(KG)17.2FF (%)70-76%Junction Box TypePass the TUV CertificateTolerance Wattage(e.g.+/-5%)±3%Front Glass Thikness(mm)3.2Temperature Coefficients of Isc(%)°C+0.04Temperature Coefficients of Voc(%)°C-0.38Temperature Coefficients of Pm(%)°C-0.47Temperature Coefficients of Im(%)°C+0.04Temperature Coefficients of Vm(%)°C-0.38Temperature Range-40°C to +85°CSurface Maximum Load Capacity2400PaAllowable Hail Load23m/s ,7.53gBypass Diode Rating(A)12Warranty90% of 10 years,80% of 25 years.Standard Test ConditionsAM1.5 1000W/ 25 +/-2°C
