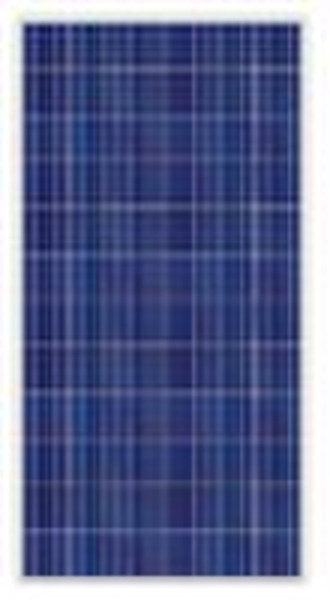

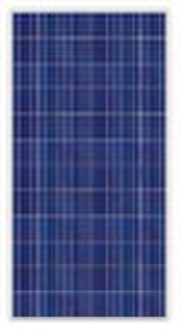

Solar panel (Poly Module 280W/270W/250W)
Grant Lee
Contact person
Basic Information
| Place of Origin | Shanghai China (Mainland) |
|---|---|
| Brand Name | CHIKO SOLAR |
| Model Number | CK-PM-280W |
| Size | 1960*990*50mm |
| Number of Cells | 72pcs |
| Max. Power | 280W |
| Material | Polycrystalline Silicon |
PV Poly solar panel Products Mold: CK-PM-280W/CK-PM-270W/CK-PM-250W Maximum Power(W)280270250Optimum Power Voltage(Vmp)35.1435.1435.14Optimum Operatige Current(Imp)7.977.687.11Open Circuit Voltage(Voc)43.2043.2043.20Short Circuit Current(Isc)8.538.217.60Solar Cell:156*156 PolyNumber of Cell(pcs)6*12Brand Name of Solar Cells----CellSize of Module(mm)1960*990*50Caple & Connector TypePass the TUV CertificateFrame(Material Corners,etc.)Aluminium-alloyBacking (Brand Type)TPTCell Efficiency for 280W(%)16Weight Per Piece(KG)21FF (%)70-76%Junction Box TypePass the TUV CertificateTolerance Wattage(e.g.+/-5%)±3%Front Glass Thikness(mm)3.2Temperature Coefficients of Isc(%)°C+0.04Temperature Coefficients of Voc(%)°C-0.38Temperature Coefficients of Pm(%)°C-0.47Temperature Coefficients of Im(%)°C+0.04Temperature Coefficients of Vm(%)°C-0.38Temperature Range-40°C to +85°CSurface Maximum Load Capacity2400PaAllowable Hail Load23m/s ,7.53gBypass Diode Rating(A)12Warranty90% of 10 years,80% of 25 years.Standard Test ConditionsAM1.5 1000W/ 25 +/-2°C
